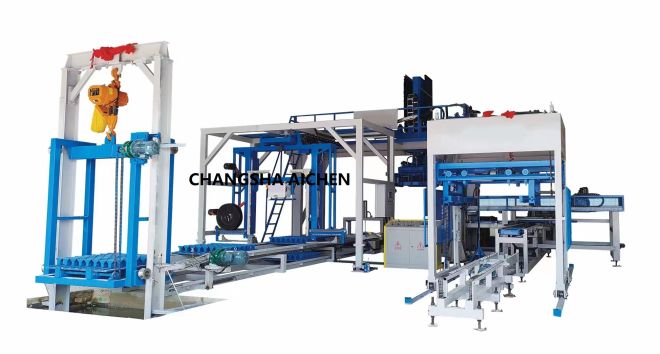

What Is a Gantry Type Brick Collect Machine?
A gantry type brick collect machine, also known as a block palletizer, is a robotic system designed to automatically pick up finished bricks or blocks from the conveyor and neatly place them onto pallets. The “gantry type” refers to the overhead design, where a robotic arm moves along a frame to reach and collect bricks from different positions—ensuring precision, speed, and flexibility.
This is one of our high-end concrete block stacking machine. During producing, it does not need blocks or pallets stacking by labors. It is full automatic brick cuber and block stacking sysatem and stacking up blocks and pallets right away. Only 2 or 3 workers can operate well the whole block palletizer production line, so you can save cost on block cubering, pallets stacking, labours on stacking. This is a model specially for exporting, it has the best configuration and the best quality inspection. It is an idea block making machine palletizer or block cuber with great performance and power consumption.
Brick Collect Machine Features:
Working process:
The automatic preformed-holes dry block packing system can separate the bricks of different types and specifications produced by different types of brick machines, reassemble the blocks, and finally form a square stack of about one meter. Cross palletizing is carried out, and the fork brick hole position can be generated automatically according to the need. The palletizing height can be up to 1450mm.
After the palletizing is completed, it can be palletized and output through a heavy chain conveyor, which can be packed manually or equipped with an automatic baling machine. Each node on the whole production line has a pre-stored position to save the forklift running time.
Inspection and maintenance:
The whole system adopts PLC and touch screen control, cooperate with laser induction and intelligent sensor to realize unmanned automatic operation, and automatically stop the alarm and display the fault location when a fault occurs, which can be easily eliminated without professional and technical personnel. Just 2-4 workers can cover the whole brick collection work, save a lot of labor cost. Equipped with remote control systems and cloud data equipment manufacturers can solve all problems in the office all the time.
Working principle:
The operation of the equipment is controlled by electricity, gas and liquid respectively, which does not interfere with each other and acts coherently.
Capacity:
The cycle time: 15s for one layer blocks
the output capacity: 2000~2500 molds/8hours.
Lifespan:
More than 6~10years, low maintains cost.
