qtj4 26c block making machine concrete block maker manual

Product Description

1. ---

   1. The QTJ4-26C block making machine is a robust and efficient piece of equipment tailored for the production of high-quality concrete blocks. With its sturdy construction and user-friendly design, this machine is capable of manufacturing a wide range of blocks, including hollow blocks, solid blocks, and interlocking pavers. The QTJ4-26C is renowned for its reliability, ease of operation, and versatility, making it an excellent choice for small to medium-scale brick-making businesses or construction projects.

      Design and Structure:

      • The machine features a robust and compact design, allowing it to be easily installed and operated in different construction sites.
      • It is built with a steel frame and utilizes advanced welding technology, ensuring durability and stability during operation.

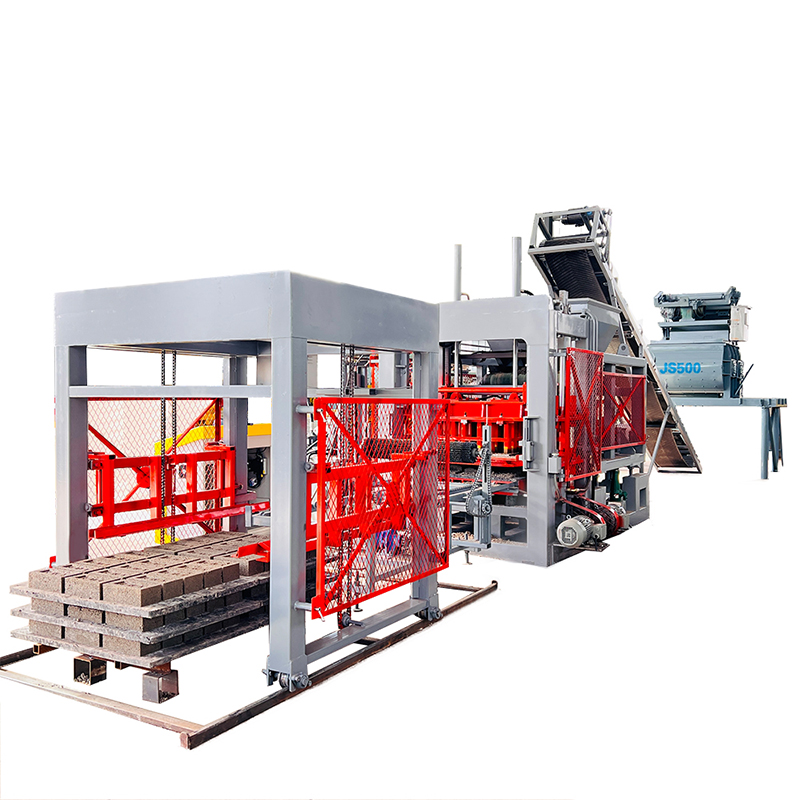

      • The machine consists of a main machine body, a concrete mixer, a belt conveyor, a stacker, and a control system.

   2. Block Production Capacity:

      • The QT4-24 machine can produce various types of concrete blocks, including solid blocks, hollow blocks, interlocking paver blocks, and curbstones.
      • It has a production capacity of around 4,000 to 5,000 blocks per 8-hour shift, depending on the block size and design.

   3. Operation and Control:

      • The machine is semi-automatic, requiring manual labor for loading raw materials and unloading finished blocks.
      • It is equipped with a control panel that allows for easy operation and adjustment of block dimensions and production parameters.
      • The control system ensures precise and consistent block production, resulting in uniform block sizes and shapes.







CLICK HERE TO CONTACT US

Specification

Block size	Qty/mold	Cycle time	Qty/Hour	Qty/8 hours
Hollow block 400x200x200mm	4 pcs	26-35s	410-550pcs	3280-4400pcs
Hollow block 400x150x200mm	5pcs	26-35s	510-690pcs	4080-5520pcs
Hollow block 400x100x200mm	7pcs	26-35s	720-970pcs	5760-7760pcs
Solid brick 240x110x70mm	15pcs	26-35s	1542-2076pcs	12336-16608pcs
Holland paver 200x100x60mm	14pcs	26-35s	1440-1940pcs	11520-15520pcs
Zigzag paver 225x112.5x60mm	9pcs	26-35s	925-1250pcs	7400-10000pcs

Customer Photos

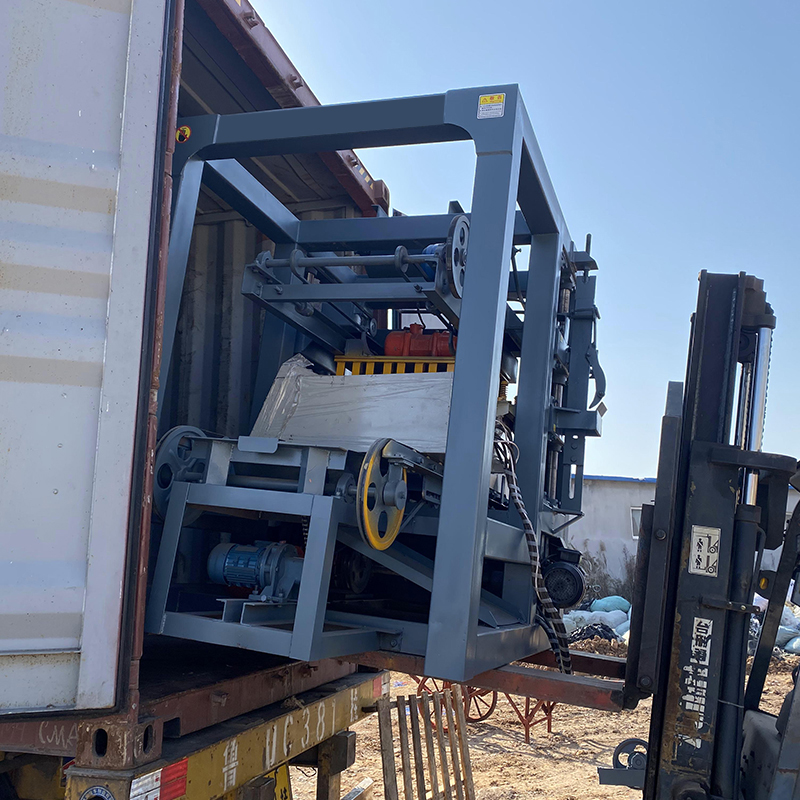

Packing & Delivery
