What Is the QT10-15 Block Production Line?
The QT10-15 is a fully automatic concrete block machine designed for high-capacity production. With a strong frame and smart control system, it supports the efficient manufacturing of:
- Hollow blocks
- Solid blocks
- Paving stones
- Curbstones
Whether you're building houses or roads, the QT10-15 Automatic Concrete Block Production Line can fit for your project needs.
Qt10-15 Industrial Cement Brick Production Line Automatic Machine, 25000+ Blocks/Day Hydraulic Block Plant for Mega Projects is one of our sell best automatic block machine model, it is full automatic can make all types of hollow blocks, solid blocks, pavers, curbstones and so on, adopts our most advanced hydraulic system and vibration system, can ensure the block quality very good and the working noise very low. We cooperated with SIEMENS, SCHNEIDER, OMRON, CALYCA and so on to make sure our block machine with high quality and keep our machine work more stable

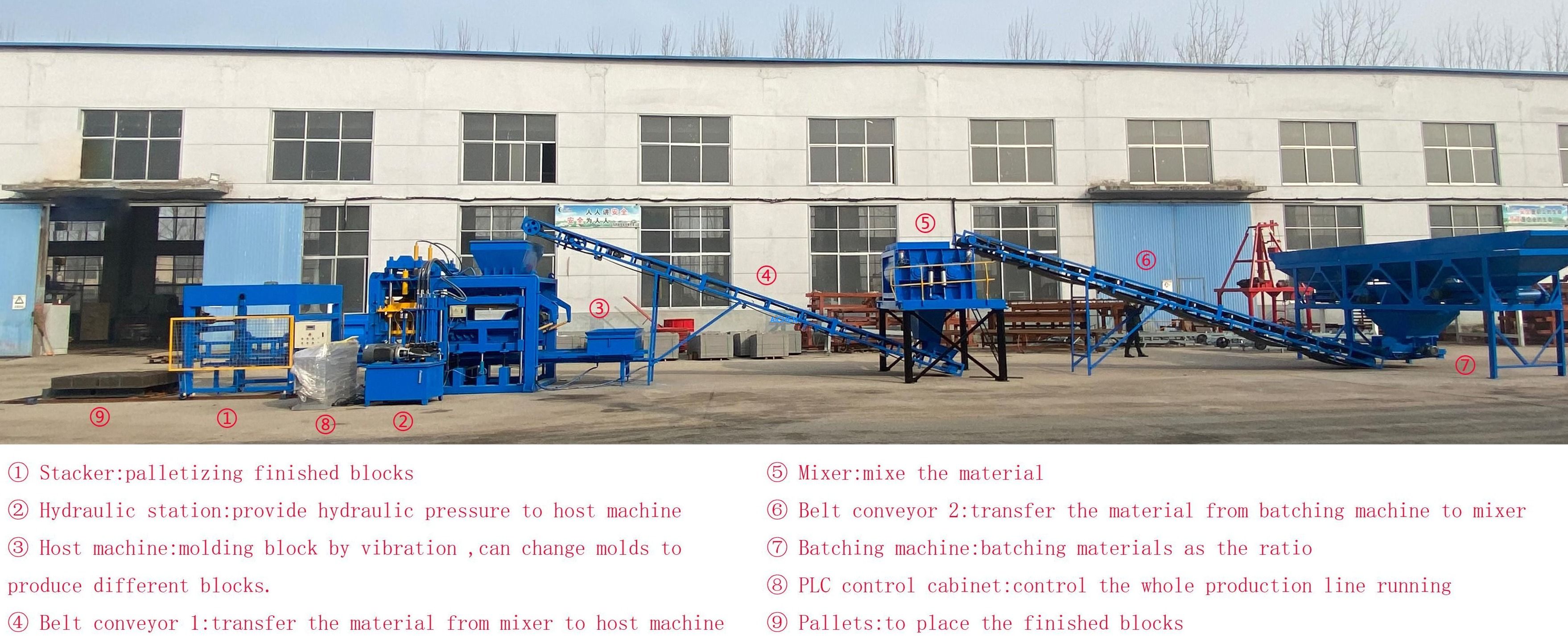

What makes QT10-15 Block making machine
① Stacker
Used to collect pallets
②Hydraulic station
To provide hydraulic pressure to the machine
③Host machine
Block molding system with vibration pressure.
④Belt conveyor 1
transfer the material from mixer to host machine hopper
⑤ Mixer
mix the material
⑥ Belt conveyor 2
Transfer the material from baching machine to mixer
⑦ Baching machine
batching materials as the ratio
⑧PLC control cabinet
control the whole production line running
Advantage of QT10-15 Automatic Concrete Block Production Line
-
1) There are two vibrating motors on each side,Total Four motors driven vibration system.Vibration box size is increased according to mold area and special brick type.The wide area vibration box is driven from four directions to ensure the balance of vibration, so that the vibration power to the brick can be effectively transmitted.The machine vibration efficiency is 30-40% higher than that of 2 motors, thus increasing the density and strength of finished bricks.(2) Mold high-precision gear positioning system.Up and down mould with 4 synchronous shaft (8 synchronous gear and rack positioning unit) of upper and lower mould on accurate positioning, gear and rack after Germany Japan high precision machine tool cutting grinding, ensures that the mould body moves up and down around the mould surface always stay in the same horizontal plane,thus ensuring the height of the cement block keep highly consistent.At the same time, the friction coefficient of upper and lower molds can be reduced to extend the service life of molds.
(3)Adopt German design concept, feeding system adopts hyperbolic arm, double synchronous shaft, 4 cylinder efficient and accurate distribution system, to ensure the stability of the distribution system, as well as the efficiency of the distribution speed.Ensures brick production and reduces damage to the machine's distribution system.(4)Air bag damping system.It can effectively reduce the vibration noise and quickly eliminate the high frequency vibration damage caused by the vibration force to the whole machine, thus prolongs the life of the machine and the mold and reduces the noise pollution to the operator
(5) All molds are made of steel of national standard (and EU standard). After high-precision cutting, high temperature carburizing heat treatment (900℃ high temperature, 200℃ tempering) is carried out at the same time, so that the hardness of the molds can reach 55-63HRC (ordinary steel is only 25-30HRC hardness).(6) The use of Taiwan CALYCA or Japan YUKEN valve, ensure the effective input and output of the hydraulic system,and long service life.
(7)The PLC and touch screen are made from Germany Siemens brand.Ensure the stability of the program and long service life.(8)The eccentric shaft drives the rake to rotate, making the raw material well-distributed
