hzs75 75m3/h concrete mixing plant batch plant for sale

Product Description

1. 1. Dry Concrete Batching Pant is for mixing sand / stone / cement together without water and other liquid. The capacity is customized from 10 - 300m3/h.
      Other: Dry batching plant is without mixer. Mixing material in the mixing truck. The price of cement silo and screw conveyor is not included. It's equipped based on model of batching plant. Please tell us the model you need, we send complete quotation to you. And the port name that near to you.

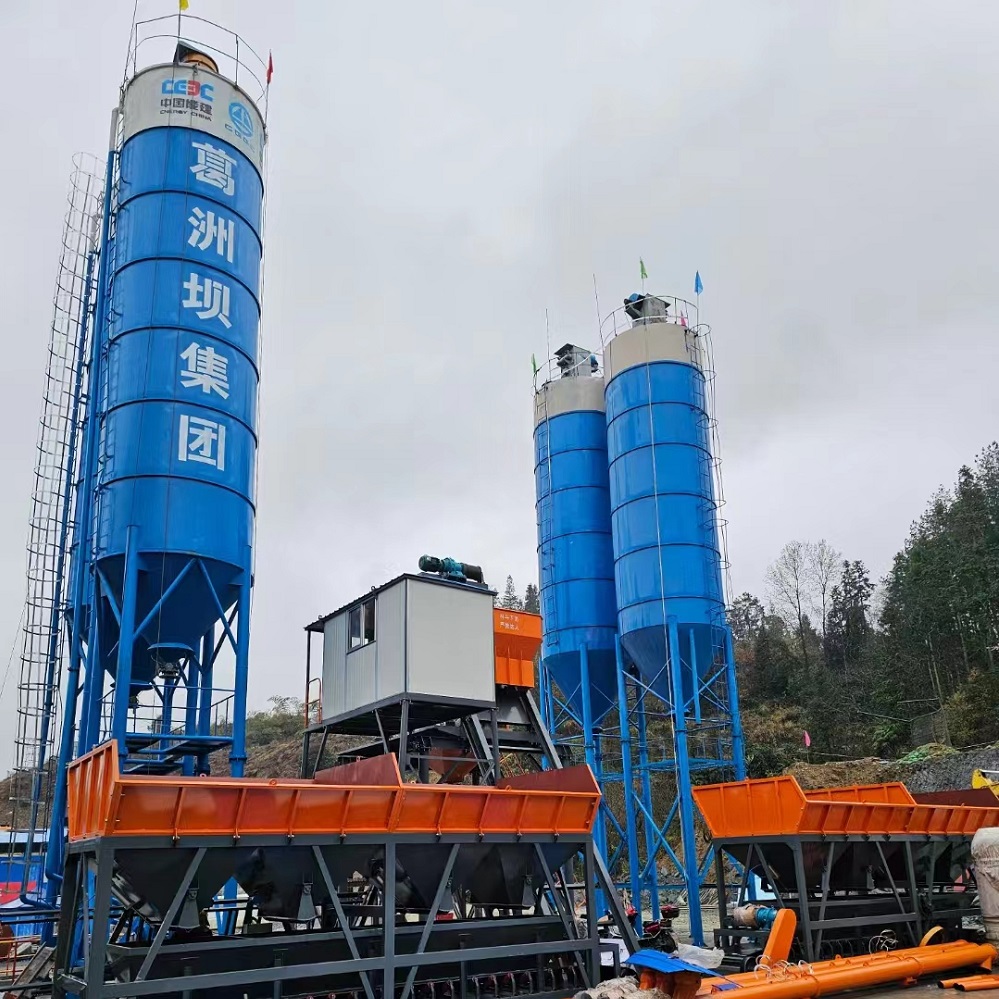

      Advantages of Cement Silo for Concrete Batching Plant： For easy transportation and to save the ocean freight, we design the walls of cement silo into pieces. The pieces only take small space and they are very easy to be assembled together at the construction site. It is also very easy for the later repair or replacement of any corrosion.

Product Details

CLICK HERE TO CONTACT US

Specification

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120	HZS150	HZS180
Discharging Capacity (L)	500	750	1000	1000	1500	1500	2000	2500	3000
Charging Capacity(L)	800	1200	1600	1600	2400	2400	3200	4000	4800
Maximum Productivity(m³/h)	25	35	50	60	75	90	120	150	180
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	belt conveyor	Skip Hopper	belt conveyor	belt conveyor	belt conveyor	belt conveyor
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	4.2	4.2	4.2	3.8~4.5	4.5	4.5
Number of Species of Aggregate	2~3	2~3	3~4	3~4	3~4	4	4	4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤80mm	≤80mm	≤80mm	≤120mm	≤150mm	≤180mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	3×100T	3×100T	3×100T	4×100T or 200T	4×200T	4×200T
Mixing Cycle Time(s)	72	60	60	60	60	60	60	30	30
Total Installed Capacity(kw)	60	65.5	85	100	145	164	210	230	288
