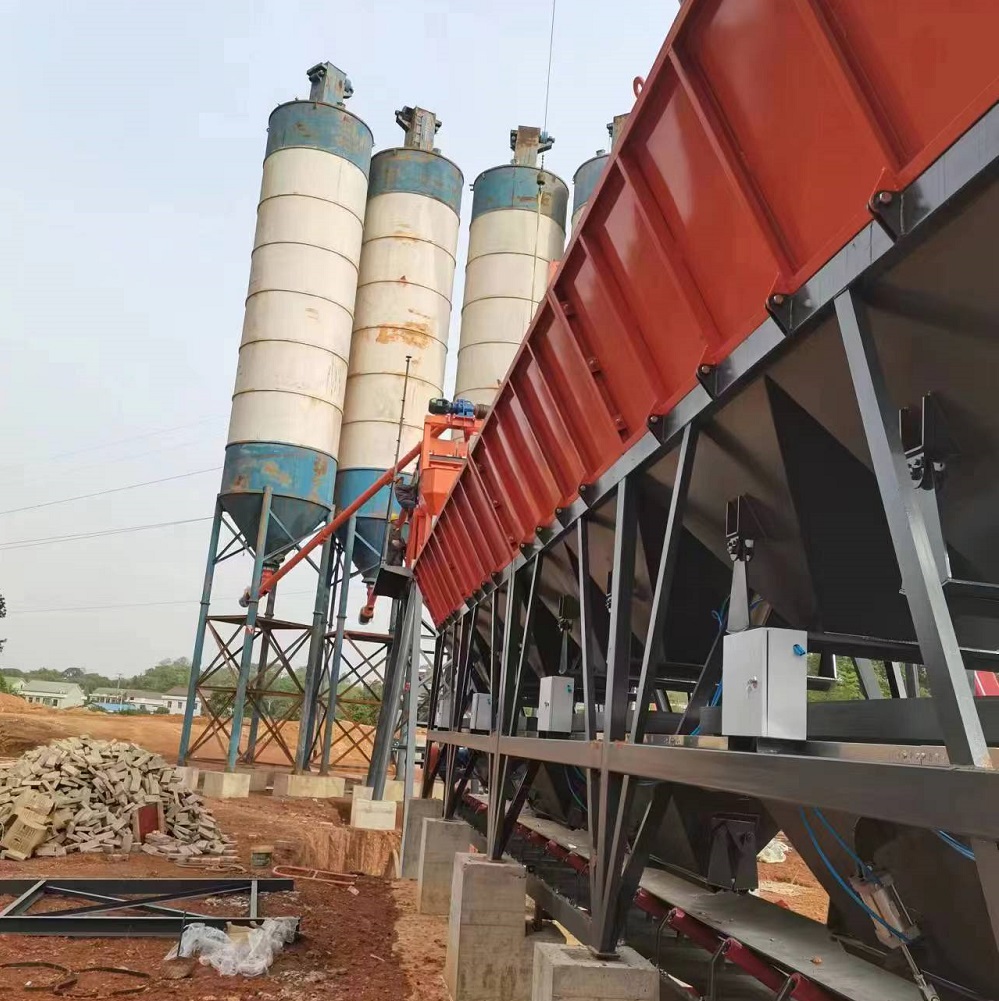

25m3/h precast concrete batching plant concrete mixing station
Product Description
- They are widely used in big and medium construction projects,road,bridge project, and concrete prefabrication factory.
1.Easy to transport, install and debug.2. It has a variety of basic forms to ensure adaptation to different sites.3. Structural members are durable.
4. Mixing system selection JS(or SICOMA) biaxial strong concrete mixer, its high efficiency, good mixing quality.
5.Computer plus PLC control system to ensure simple and stable operation, dynamic panel display can make the operator clearly understand the operation of each part. Abnormal working conditions and faults are convenient for maintenance and elimination.
6.Host cleaning with high pressure pump cleaning device, good maintenance performance.
Product Details
Specification
|
Model
|
HZS25
|
HZS35
|
HZS50
|
HZS60
|
HZS75
|
HZS90
|
HZS120
|
HZS150
|
HZS180
|
|
Discharging Capacity (L)
|
500
|
750
|
1000
|
1000
|
1500
|
1500
|
2000
|
2500
|
3000
|
|
Charging Capacity(L)
|
800
|
1200
|
1600
|
1600
|
2400
|
2400
|
3200
|
4000
|
4800
|
|
Maximum Productivity(m³/h)
|
25
|
35
|
50
|
60
|
75
|
90
|
120
|
150
|
180
|
|
Charging Model
|
Skip Hopper
|
Skip Hopper
|
Skip Hopper
|
belt conveyor
|
Skip Hopper
|
belt conveyor
|
belt conveyor
|
belt conveyor
|
belt conveyor
|
|
Standard Discharging Height(m)
|
1.5~3.8
|
2~4.2
|
4.2
|
4.2
|
4.2
|
4.2
|
3.8~4.5
|
4.5
|
4.5
|
|
Number of Species of Aggregate
|
2~3
|
2~3
|
3~4
|
3~4
|
3~4
|
4
|
4
|
4
|
4
|
|
Maximum Aggregate Size(mm)
|
≤60mm
|
≤80mm
|
≤80mm
|
≤80mm
|
≤80mm
|
≤80mm
|
≤120mm
|
≤150mm
|
≤180mm
|
|
Cement/Powder Silo Capacity(set)
|
1×100T
|
2×100T
|
3×100T
|
3×100T
|
3×100T
|
3×100T
|
4×100T or 200T
|
4×200T
|
4×200T
|
|
Mixing Cycle Time(s)
|
72
|
60
|
60
|
60
|
60
|
60
|
60
|
30
|
30
|
|
Total Installed Capacity(kw)
|
60
|
65.5
|
85
|
100
|
145
|
164
|
210
|
230
|
288
|
