LB800 granite asphalt plant hot mix asphalt plant

Short Description:

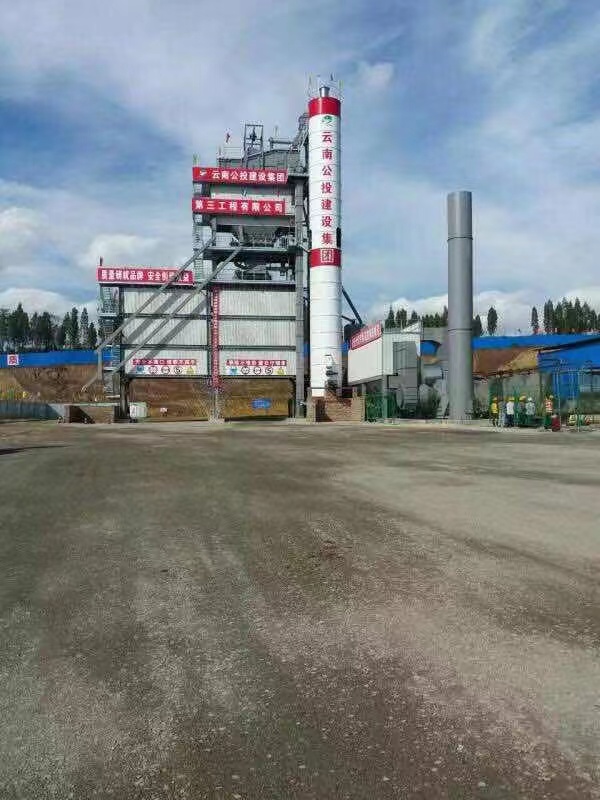

Staionary asphalt batching plant is a hot mix asphalt plant developed and manufactured by sinoroader in accordance with the needs of the market after absorbing the international advanced technology.

Price: 128000-150000USD

Previous: LB1000 80ton asphalt batch mix plant bitumen plant

Next: LQY 40Ton Asphalt batching Plant asphalt plant cost

Product Detail

Product Tags

Product Description

The mixing plant adopts a modular structure, fast transportation and convenient installation, compact structure, small cover area and high cost performance. The total installed power of the device is low, saving energy, can create considerable economic benefits for the user. The plant features accurate measurement, simple operation and stable performance which fully meets the requirements of highway construction and maintenance.

CLICK HERE TO CONTACT US

Specification

Model	Rated Output	Mixer Capacity	Dust removal effect	Total power	Fuel consumption	Fire coal	Weighing accuracy	Hopper Capacity	Dryer Size
SLHB8	8t/h	100kg	≤20 mg/Nm³	58kw	5.5-7 kg/t	10kg/t	aggregate;±5‰ powder;±2.5‰ asphalt;±2.5‰	3×3m³	φ1.75m×7m
SLHB10	10t/h	150kg		69kw				3×3m³	φ1.75m×7m
SLHB15	15t/h	200kg		88kw				3×3m³	φ1.75m×7m
SLHB20	20t/h	300kg		105kw				4×3m³	φ1.75m×7m
SLHB30	30t/h	400kg		125kw				4×3m³	φ1.75m×7m
SLHB40	40t/h	600kg		132kw				4×4m³	φ1.75m×7m
SLHB60	60t/h	800kg		146kw				4×4m³	φ1.75m×7m
LB1000	80t/h	1000kg		264kw				4×8.5m³	φ1.75m×7m
LB1300	100t/h	1300kg		264kw				4×8.5m³	φ1.75m×7m
LB1500	120t/h	1500kg		325kw				4×8.5m³	φ1.75m×7m
LB2000	160t/h	2000kg		483kw				5×12m³	φ1.75m×7m
